LibreNMS Example Alerts

Based on the work of zimmertr/LibreNMS-Example-Alerts

Included alerts

This table holds all of my LibreNMS alerts.

# Name Rule Severity Extra
1 CPU usage > 95% for 15 minutes. processors.processor_usage >= 95 warning Max: 1 Delay: 60 Interval: 900
2 Host has been down for 10 minutes. macros.device_down = 1 critical Max: 1 Delay: 60 Interval: 600
3 Host has been rebooted. devices.uptime < 300 AND macros.device = 1 warning Max: 1 Delay: 60 Interval: 300
4 Host has not been polled within the last day. devices.last_polled >= 86400 critical Max: 1 Delay: 60 Interval: 300
5 Memory usage > 95% for 5 minutes. mempools.mempool_perc >= 95 warning Max: 1 Delay: 60 Interval: 300
6 Network usage > 80% for 5 minutes. %macros.port_usage_perc >= "80" ok Max: 1 Delay: 60 Interval: 600
7 Root filesystem has less than 5% free space available. storage.storage_descr = "/" AND storage.storage_perc >= 95 critical Max: 1 Delay: 60 Interval: 300
8 Service up/down services.service_status != 0 AND macros.device_up = 1 warning Max: 1 Delay: 60 Interval: 300
9 Host has entered a Warning state. %services.service_status = "1" warning Max: -1 Delay: 300 Interval: 300
10 Host has entered a Critical state. %services.service_status = "2" critical Max: -1 Delay: 300 Interval: 300

Telegram HTML Alert Template

LibreNMS allows you to customize the alert message that is sent to your transport endpoint. The following is my default message. I did not bother with additional templates.

Alert Title: LibreNMS ({{ $alert->hostname }}) - NEW ALERT
Recovery Title: LibreNMS ({{ $alert->hostname }}) - END OF ALERT
Alert Body:

<b><i><u>{{ $alert->title }}</u></i></b>

@if ($alert->state == 0)<b><u>Duration:</u></b> {{ $alert->elapsed }} @else <b><u>Severity:</u></b> {{ $alert->severity }} @endif

<b><u>Rule:</u></b> @if ($alert->name) {{ $alert->name }} @else {{ $alert->rule }} @endif

@if ($alert->faults)<b><u>Faults:</u></b>
@foreach ($alert->faults as $key => $value)
  {{ $key }}: {{ $value['string'] }}
@endforeach
@endif

<b>---------------------------</b>
<b><u>Timestamp:</u></b> {{ $alert->timestamp }}
<b><u>Uptime:</u></b> {{ $alert->uptime_long }}

Alert Example

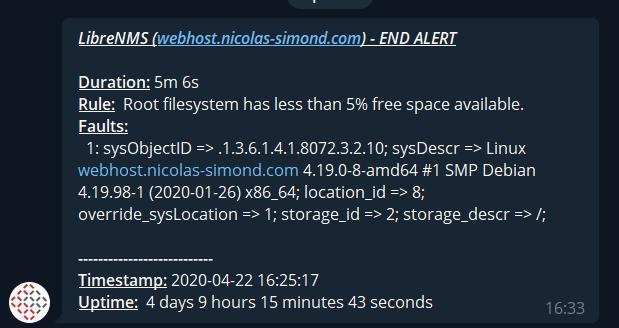

The following is a screenshot of my telegram bot displaying a test alert

S
Description
Collection of my custom LibreNMS alerts & templates
Readme GPL-3.0 1,012 KiB
